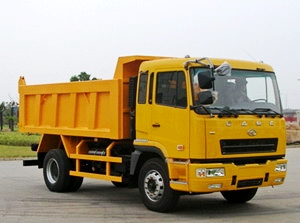

HN3220P26C8M
TECHNICAL SPECIFICATIONS
|
Product Model |
HN3220P26C8M |
|
G.V.W |
16ton |
|
Payload |
10 ton |
|
Drive Model |
4X2 |
|
Engine Brand |
CUMMINS |
|
Engine Model |
C280 20 |
|
Engine Max. Power (kw/r/min) |
206/2200 |
|
Engine Displacement |
8300ml |
|
Engine Emission Standard |
Euro II |
|
Clutch |
Φ430 diaphragm spring |
|
Transmission Brand |
Shanxi FAST GEAR |
|
Transmission Model |
9JS119 |
|
Rear Axle(drive axle)-load |
13 ton |
|
Front Axle-load |
7.5 ton |
| Cabin type |
Mitsubishi style / flat roof |
| Cabin |
With A/C, Radio, Bunk |
| Brake System |
Full air brake with exhaust brake (optional ABS) |
| Steering System |
HITACHI |
| Wheelbase (mm) |
4200 |
| Wheel Type |
Bias/Radial/Radial tubeless |
| Wheel Model (optional) |
11.00-20/11.00R20/11R22.5 |
| Wheel Tire number |
6+1 |
| Oil Tank Volume (L) |
320 |
| Overall Dimensions (mm) |
6920x2495x3100 |
| Body interior (mm) |
4500x2300x1100 |
| Body Steel Thickness |
Bottom 8mm/Side 5mm |
| Body Lifting System |
Hydraulic Central Lift |
| Front overhang/Rear overhang(mm) |
1370/1750 |
| Approach/Departure Angle(°) |
23/36 |
| No. of steel spring(front/rear) |
9/9+6 |
| Max. Speed (km/h) |
78 |
