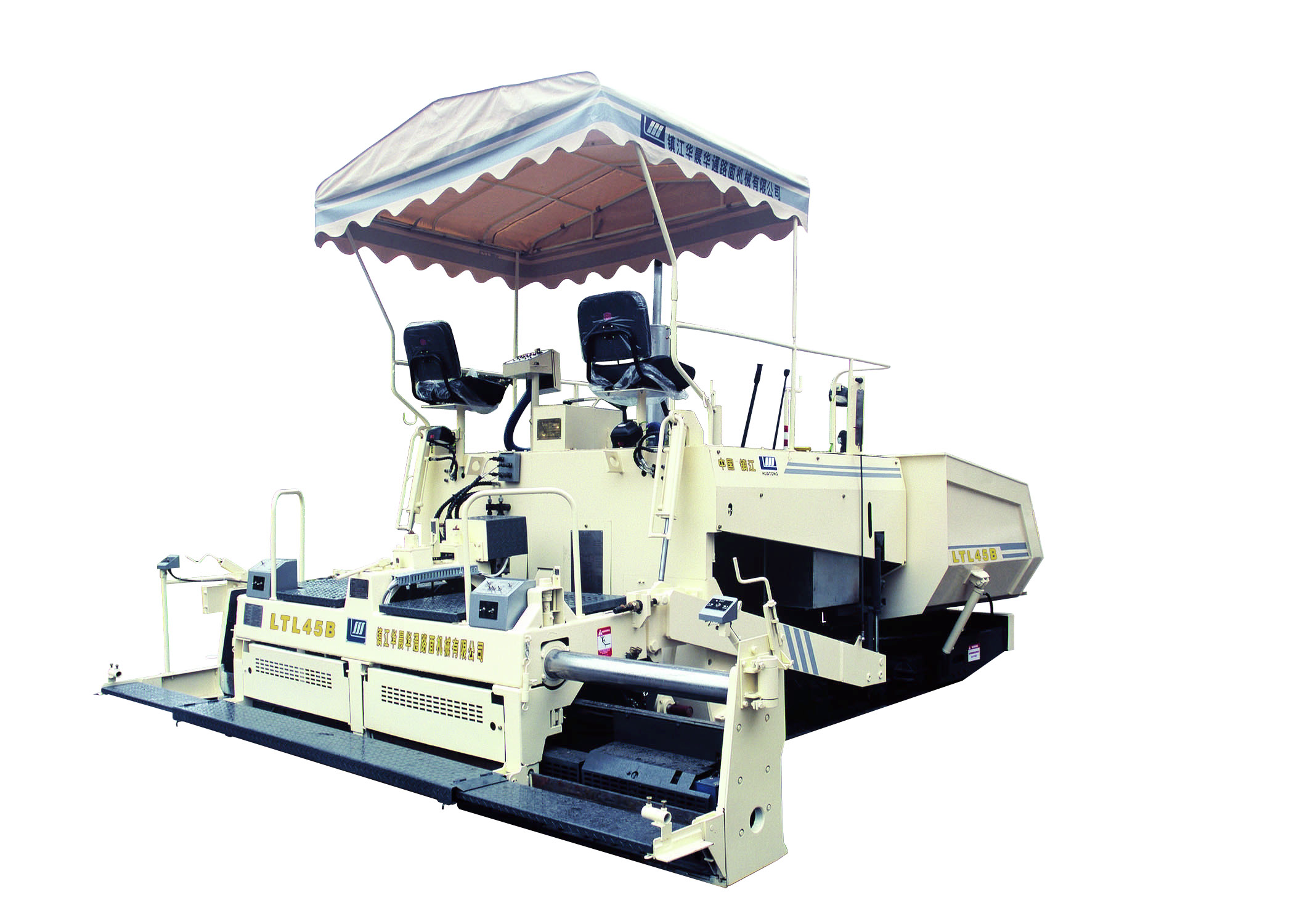

LTL45B
LTL45B asphalt paver is used to pave asphalt for highway, urban road, plaza, and parking lots etc. It is the ideal machine for road construction.
The machine is mechanical - hydraulic driving and is equipped with hydraulically extension screed and automatic leveling unit. LTL45B asphalt paver can pave the road with good leveling and high density. The vulnerable parts use advanced wearable material to secure the performance.
The machine is mechanical - hydraulic driving and is equipped with hydraulically extension screed and automatic leveling unit. LTL45B asphalt paver can pave the road with good leveling and high density. The vulnerable parts use advanced wearable material to secure the performance.
TECHNICAL SPECIFICATIONS
|
Product description
|
Asphalt Paver
|
|
Model
|
LTL45B
|
|
Paving width(m)
|
2.5-4.5
|
|
Paving thickness(mm)
|
10-250
|
|
Paving speed(m/min)
|
2.03-6.07
|
|
Traceling speed(km/h)
|
1.55-4.62
|
|
Engine
|
DEUTZ ENGINE F4L912,46KW
|
|
Screed
|
Hydraulic extension to 4.5m
|
|
Leveling unit
|
Two longitudinal units
|
|
Tamp
|
/
|
|
Driving manner
|
Mechanical and hydraulic drive
|
