2LTLZ60

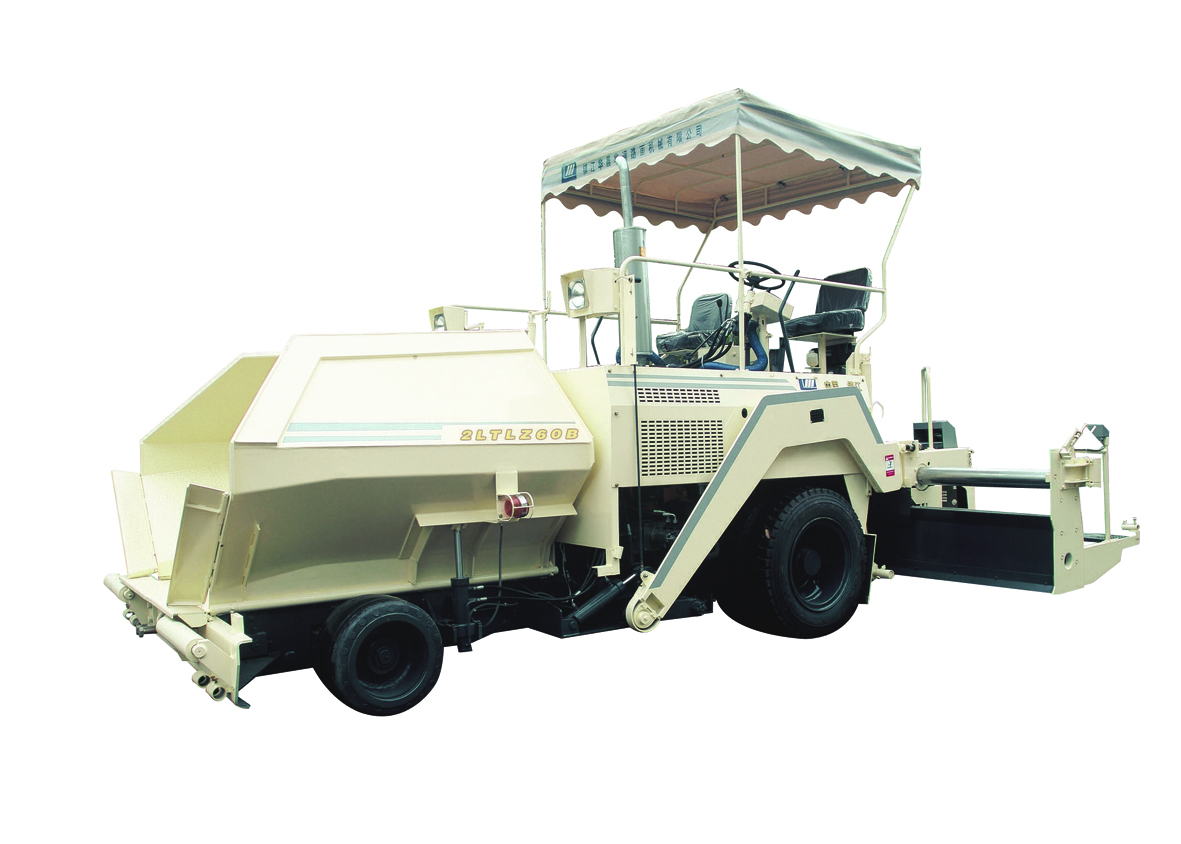

2LTLZ60 asphalt paver is suit to pave asphalt material. It is widely used for the construction of highway, urban road, plaza, and parking lots etc.
Strong powered, compact and with easy operation, mechanical driving. The machine uses double hydraulically telescoped screed and auto leveling sensor device. 2LTLZ60 asphalt paver can pave the road with good leveling and high density. The vulnerable parts use advanced wearable material to secure the performance.
Strong powered, compact and with easy operation, mechanical driving. The machine uses double hydraulically telescoped screed and auto leveling sensor device. 2LTLZ60 asphalt paver can pave the road with good leveling and high density. The vulnerable parts use advanced wearable material to secure the performance.
TECHNICAL SPECIFICATIONS
|
Product description
|
Asphalt Paver (Wheel)
|
|
Model
|
2LTLZ60B
|
|
Paving width(m)
|
2.8-6
|
|
Paving thickness(mm)
|
10-250
|
|
Paving speed(m/min)
|
3.07-9.16
|
|
Traceling speed(km/h)
|
2.3-16.84
|
|
Engine
|
DEUTZ ENGINE BF6L913T,86KW
|
|
Screed
|
Hydraulic extension to 5m and mechanical extension after
|
|
Leveling unit
|
Two longitudinal and transverse automatic units
|
|
Tamp
|
/
|
|
Driving manner
|
Mechanical and hydraulic drive |
