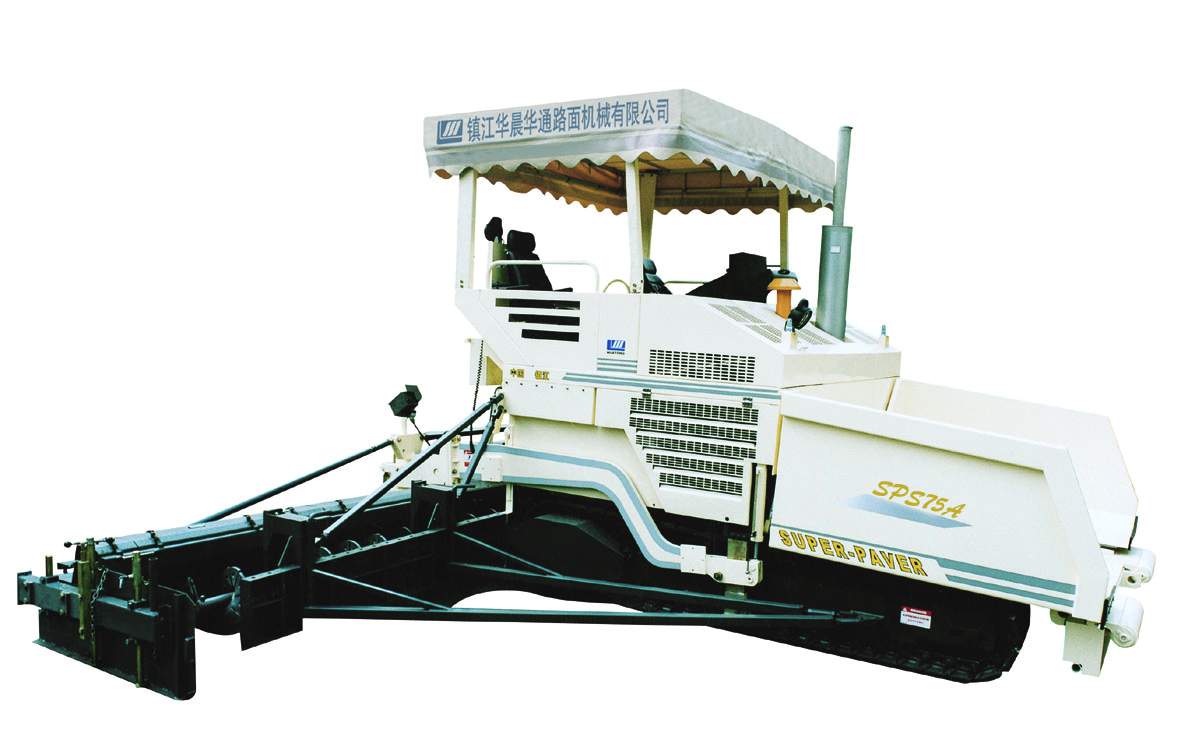

SPS75
SPS75 versatile paver is developed by our company, which is suitable for paving highway base and surface. It absorbs advanced technology of foreign machine, high automation, easy operation and high efficiency make it ideal machine for the user.
The machine is of hydraulic driving and is equipped with mechanically pieced screed with vibrator and double tamper. SPS75 versatile paver can pave the road with good leveling and high density, and its vulnerable parts use advanced wearable material to make sure the performance.
The machine is of hydraulic driving and is equipped with mechanically pieced screed with vibrator and double tamper. SPS75 versatile paver can pave the road with good leveling and high density, and its vulnerable parts use advanced wearable material to make sure the performance.
TECHNICAL SPECIFICATIONS
| Product description | Asphalt Paver (Wheel) |
| Model | SPS75 |
| Paving width(m) | 3000-7500 |
| Paving thickness(mm) | 20-320 |
| Paving speed(m/min) | 0-10 |
| Traceling speed(km/h) | 0-2.9 |
| Smoothness | DEUTZ ENGINE F4L912,46KW |
| 6mm/3m(ruler) stabilized soil Road Arch (%) | σ≤1.2mm(the surface of the asphalt) |
| Hopper Capacity (t) | 3 |
| Max. Theoretical output (t/h) | 14 |
| Vibrating Frequency (Hz) | 0-50 |
| Tampering Frequency (Hz) | 0-1500 |
| Weight (kg) | 19000~22500 |
| Overall Size | 6314*3182*3990 |
| Engine | 2six cylinders, water cooled D6114ZG1B, 140kW/2300r/min |
