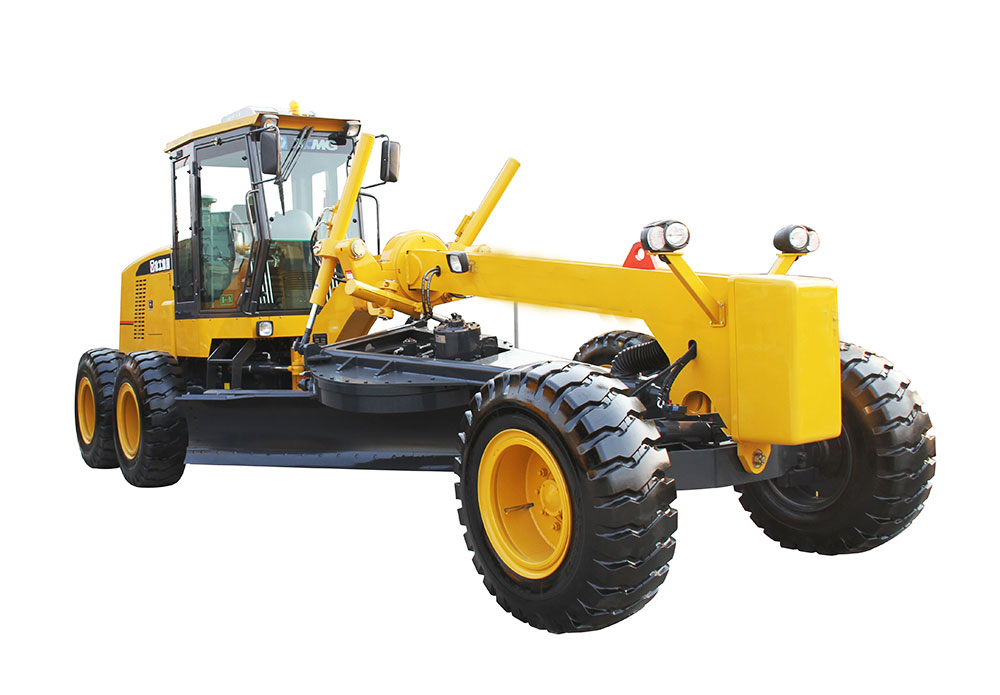

G220/220A

1. Cummins China engine (or Shangchai engine) all have a reliable performance and steady big power output in various working conditions.

2. Gearbox can supply more than 3 working speeds, which can ensure the reliability and flexibility of operation.

3. Special front and rear axles for grader are adopted to sure the reliable power supply of engine and its safety.

4. Advanced technologies and imported HUSCO multi-direction valves are applied in the hydraulic system, thus the system’s reliability can be ensured.

5. The internationally advanced hydraulic technology is adopted in the braking system.

6. Newly sealed-hydraulic cylinder and all imported seal components can ensure no leakage of the hydraulic system.

7. Articulated framework and together with the slewing front drum can make sure that the turning radius is small while the flexibility is high.

8. The luxury cab is completely sealed and of broad vision.

9. The grader’s new and unique shape, and streamlined engine hood make maintenance easier and heat radiate faster.

10. Various optional auxiliary equipments are provided: front bulldozing plate, rear rippers, automatic leveling unit tooth-like rolling ring, parking heater and warm air blower.

Technical Data

Item	G220/220A
Engine	CUMMINS
Model	6CTA8.3-C215
Rated power (kW)	160
Speed (r/m)	2200
Length*Chord Height (mm)	4270x610
Swing Angle	360°
Sloping Angle for Blade	90°
Forward Speed 1-6 (Km/h)	5-38
Reverse Speed 1-3 (Km/h)	5-23
Min. Turning Radius (m)	7.8
Gradeability (%)	20
Tread (mm)	2156
Tyre Size	17.5-25
Incline Angle for Front Axle	±17°
Steering Angle for Front Axle	±45°
Swing Angle for Front Axle	±15°
Min. Ground Clearance (mm)	430
Joint Steering Angle	25° L/R
Braking Mode	Hydraulic brake
Operating Weight (kg)	17000/17500
Max. Tractive Force (kN)	98/115
Overall Dimension (mm)	9450/9642x2610x3440
