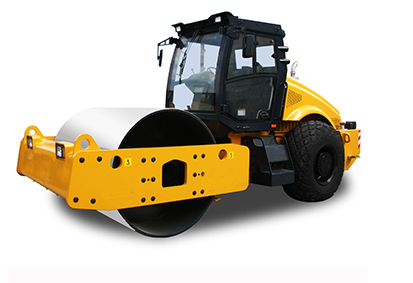

R12S-REAR WHEEL DRIVE
Hydraulic heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial group.
1. Equipped with Cummins engine
2. Double (or single) frequency & Double amplitude, and super centrifugal force, creates strong compacting effect
3. Reasonable configuration, reliable performance, and high working efficiency hydraulic components
4. Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.
5. Full-wheel (or rear-wheel) hydraulic drive and stepless T/M.
Technical Data
|
Item |
R12S |
|
Drive Mode |
Rear-wheel |
|
Engine |
CUMMINS CHINA |
|
Model |
6BT5.9 |
|
Rated Power (kW) |
110 |
|
Speed (r/min) |
2200 |
|
Operating Weight (kg) |
12000 |
|
Static Line Force (N/cm) |
300 |
|
Vibration Amplitude (mm) |
1.75/0.85 |
|
Vibration Frequency (Hz) |
31/35 |
|
Centrifugal Force (kN) |
250/125 |
|
Max. Travel Speed (Km/h) |
12.1 |
|
Gradeability (%) |
20 |
|
Turning Radius (mm) |
6500 |
|
Drum Width (mm) |
2130 |
|
Wheelbase (mm) |
2945 |
|
Ground Clearance (mm) |
395 |
|
Overall Dimension (mm) |
6010x2300x3055 |
