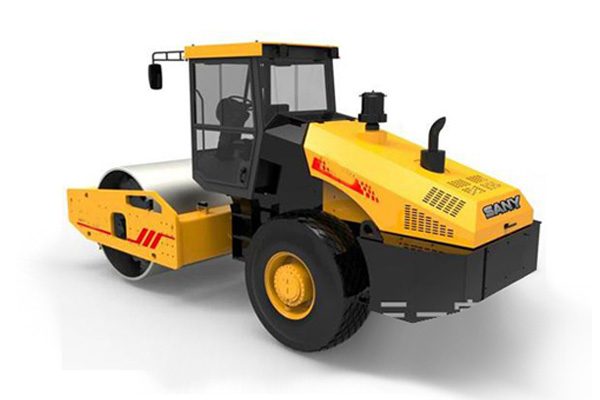

R16S
1. Hydraulic heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction, which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial group.
2. Cummins turbocharged diesel engine with rich power surplus in good performance above an elevation of 4000 meters.
3. Hydrostatic wheel & drum travel drive operated by a single lever at four range infinitely variable speeds, hydraulic pump and motors made from international advanced companies.
4. Adjustable frequency and amplitude vibration device with imported vibrating pump and motor.
5. Imported planet gear reducer integrated with wet-disc brake with oil-cutoff braking for reliable safety.
6. Unique streamline shape appearance with circle arc windscreen and engine hood for excellence sight.
Technical Data
|
Item |
R16S |
|
Drive Mode |
Full-wheel |
|
Engine |
CUMMINS CHINA |
|
Model |
6CTA8.3 |
|
Rated power (kW) |
160 |
|
Operating Weight (kg) |
16000 |
|
Static Line Force (N/cm) |
460 |
|
Vibration Amplitude (mm) |
2.0/1.0 |
|
Vibration Frequency (Hz) |
28/35 |
|
Centrifugal Force (kN) |
340/260 |
|
Max. Travel Speed(Km/h) |
11.2 |
|
Gradeability (%) |
45 |
|
Turning Radius (mm) |
7000 |
|
Drum Width (mm) |
2130 |
|
Drum Diameter (mm) |
1600 |
|
Wheelbase (mm) |
3148 |
|
Ground Clearance (mm) |
472 |
|
Overall Dimension (mm) |
6005x2360x2993 |
